Baudouin series (12kw-3000kw)Technical Specifications
Model | Brand | Engine Model | Engine Normal Power (KW) | Speed Control | Engine Brand | Rated voltage (V) | Rated current (A) | Power factor | Frequency (HZ) | Speed (r/min) | Dimensions (mm) | Weight (KG) |
COMLER12KW | COMLER | 4M08G2D3/5 | 18 | Electronic Speed Control | Baudouin | 400/230 | 21.7 | 0.8 | 50 | 1500 | 1440*690*1150 | 500 |
COMLER16KW | COMLER | 4M08G4D3/5 | 25 | Electronic Speed Control | Baudouin | 400/230 | 28.9 | 0.8 | 50 | 1500 | 1440*690*1150 | 520 |
COMLER24KW | COMLER | 4M08G8D3/5 | 33 | Electronic Speed Control | Baudouin | 400/230 | 43.3 | 0.8 | 50 | 1500 | 1700*750*1180 | 800 |
COMLER30KW | COMLER | 4M08G10D3/5 | 36.8 | Electronic Speed Control | Baudouin | 400/230 | 54.1 | 0.8 | 50 | 1500 | 1700*750*1180 | 850 |
COMLER50KW | COMLER | 4M10G2D3/5 | 60 | Electronic Speed Control | Baudouin | 400/230 | 90.2 | 0.8 | 50 | 1500 | 1900*750*1245 | 950 |
COMLER64KW | COMLER | 4M10G4D3/5 | 74.5 | Electronic Speed Control | Baudouin | 400/230 | 115.5 | 0.8 | 50 | 1500 | 1900*750*1245 | 980 |
COMLER80KW | COMLER | 4M10G6D3/5 | 96 | Electronic Speed Control | Baudouin | 400/230 | 144.3 | 0.8 | 50 | 1500 | 1900*760*1250 | 1020 |
COMLER90KW | COMLER | 4M12G1D3/5 | 110 | Electronic Speed Control | Baudouin | 400/230 | 162.4 | 0.8 | 50 | 1500 | 1900*800*1420 | 1050 |
COMLER100KW | COMLER | 4M12G2D3/5 | 125 | Electronic Speed Control | Baudouin | 400/230 | 180.4 | 0.8 | 50 | 1500 | 1900*800*1420 | 1150 |
COMLER120KW | COMLER | 4M12G4D3/5 | 135 | Electronic Speed Control | Baudouin | 400/230 | 216.5 | 0.8 | 50 | 1500 | 1900*800*1420 | 1250 |
COMLER150KW | COMLER | 6M12G2D3/5 | 168 | Electronic Speed Control | Baudouin | 400/230 | 270.6 | 0.8 | 50 | 1500 | 2600*900*1500 | 1650 |
COMLER180KW | COMLER | 6M12G6D3/5 | 218 | Electronic Speed Control | Baudouin | 400/230 | 324.8 | 0.8 | 50 | 1500 | 2600*900*1500 | 1850 |
COMLER200KW | COMLER | 6M12G8D3/5 | 235 | Electronic Speed Control | Baudouin | 400/230 | 360.9 | 0.8 | 50 | 1500 | 2600*900*1500 | 2050 |
COMLER250KW | COMLER | 6M16G8D3/5 | 290 | Electronic Speed Control | Baudouin | 400/230 | 451.1 | 0.8 | 50 | 1500 | 3150*1140*1760 | 2850 |
COMLER300KW | COMLER | 6M21G2D3/5 | 350 | Electronic Speed Control | Baudouin | 400/230 | 541.3 | 0.8 | 50 | 1500 | 3150*1140*1760 | 3050 |
COMLER350KW | COMLER | 6M21G6D3/5 | 392 | Electronic Speed Control | Baudouin | 400/230 | 631.5 | 0.8 | 50 | 1500 | 3150*1140*1760 | 3550 |
COMLER400KW | COMLER | 6M21G8D3/5 | 450 | Electronic Speed Control | Baudouin | 400/230 | 721.7 | 0.8 | 50 | 1500 | 3150*1140*1760 | 3850 |
COMLER500KW | COMLER | 6M33G6D3/5 | 575 | Electronic Speed Control | Baudouin | 400/230 | 902.1 | 0.8 | 50 | 1500 | 3700*1600*2200 | 5050 |
COMLER600KW | COMLER | 6M33G8D3/5 | 675 | Electronic Speed Control | Baudouin | 400/230 | 1082.6 | 0.8 | 50 | 1500 | 3700*1600*2200 | 5050 |
COMLER650KW | COMLER | 8M33G2D3/5 | 720 | Electronic Speed Control | Baudouin | 400/230 | 1172.8 | 0.8 | 50 | 1500 | 4100*1800*2450 | 7500 |
COMLER720KW | COMLER | 8M33G4D3/5 | 815 | Electronic Speed Control | Baudouin | 400/230 | 1299.1 | 0.8 | 50 | 1500 | 4100*1800*2450 | 7800 |
COMLER800KW | COMLER | 8M33G6D3/5 | 890 | Electronic Speed Control | Baudouin | 400/230 | 1443.4 | 0.8 | 50 | 1500 | 4100*1800*2450 | 8500 |
COMLER900KW | COMLER | 12M33G6D3/5 | 1007 | Electronic Speed Control | Baudouin | 400/230 | 1623.8 | 0.8 | 50 | 1500 | 4835*2200*2550 | 10600 |
COMLER1000KW | COMLER | 12M33G8D3/5 | 1130 | Electronic Speed Control | Baudouin | 400/230 | 1804.3 | 0.8 | 50 | 1500 | 4835*2200*2550 | 11600 |
COMLER1100KW | COMLER | 12M33G10D3/5 | 1200 | Electronic Speed Control | Baudouin | 400/230 | 1984.7 | 0.8 | 50 | 1500 | 4835*2200*2550 | 12000 |
COMLER1200KW | COMLER | 12M33G14D3/5 | 1350 | Electronic Speed Control | Baudouin | 400/230 | 2165.1 | 0.8 | 50 | 1500 | 4835*2200*2550 | 12600 |
COMLER1400KW | COMLER | 16M33G4D3/5 | 1530 | Electronic Speed Control | Baudouin | 400/230 | 2526 | 0.8 | 50 | 1500 | 5400*2220*2790 | 14500 |
COMLER1500KW | COMLER | 16M33G6D3/5 | 1680 | Electronic Speed Control | Baudouin | 400/230 | 2706.4 | 0.8 | 50 | 1500 | 5400*2220*2790 | 15500 |
COMLER1600KW | COMLER | 16M33G8D3/5 | 1800 | Electronic Speed Control | Baudouin | 400/230 | 2886.8 | 0.8 | 50 | 1500 | 5400*2220*2790 | 16500 |
COMLER1800KW | COMLER | 20M33G4D3/5 | 2010 | Electronic Speed Control | Baudouin | 400/230 | 3247.7 | 0.8 | 50 | 1500 | 6900*2500*2910 | 18500 |
COMLER2000KW | COMLER | 12M55G4D3/5 | 2200 | Electronic Speed Control | Baudouin | 400/230 | 3608.5 | 0.8 | 50 | 1500 | 6300*2350*2920 | 19500 |
COMLER2200KW | COMLER | 12M55G6D3/5 | 2420 | Electronic Speed Control | Baudouin | 400/230 | 3969.4 | 0.8 | 50 | 1500 | 6300*2350*2920 | 20500 |
COMLER2400KW | COMLER | 16M55G2D3/5 | 2646 | Electronic Speed Control | Baudouin | 400/230 | 4330.3 | 0.8 | 50 | 1500 | 7400*2750*3500 | 25800 |
COMLER2600KW | COMLER | 16M55G4D3/5 | 2900 | Electronic Speed Control | Baudouin | 400/230 | 4691.1 | 0.8 | 50 | 1500 | 7500*2750*3500 | 27500 |
COMLER3000KW | COMLER | 16M55G6D3/5 | 3300 | Electronic Speed Control | Baudouin | 400/230 | 5412.8 | 0.8 | 50 | 1500 | 7500*2750*3500 | 30500 |

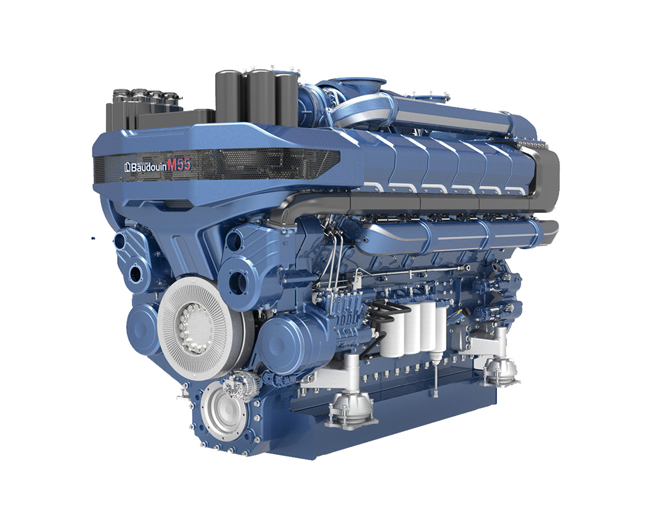

Baudouin is a joint venture between Weichai Power Co., Ltd. and Baudouin International Engine Company of France. Its products are highly reliable, economical, have an extra-long overhaul period, stable performance, and user-friendly details. The products inherit the century-old professional quality of Europe. The key components are imported as a whole. They are strictly manufactured in accordance with European manufacturing processes to achieve localized production. They are constantly upgrading technology and improving processes. They are committed to providing customers with products and services with super cost-effectiveness, and providing inexhaustible power for economic and social development.

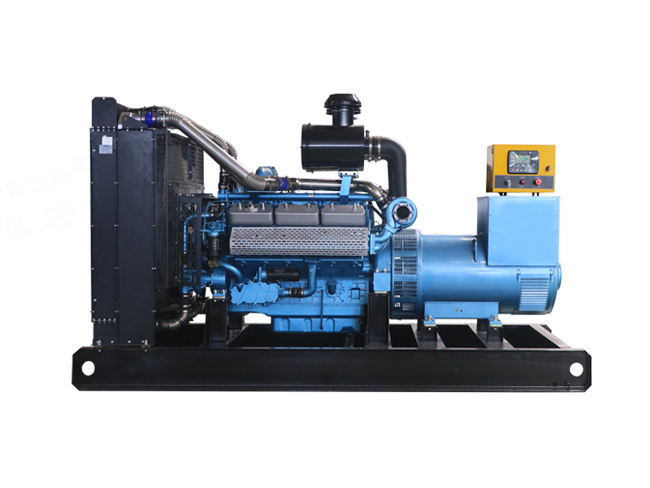

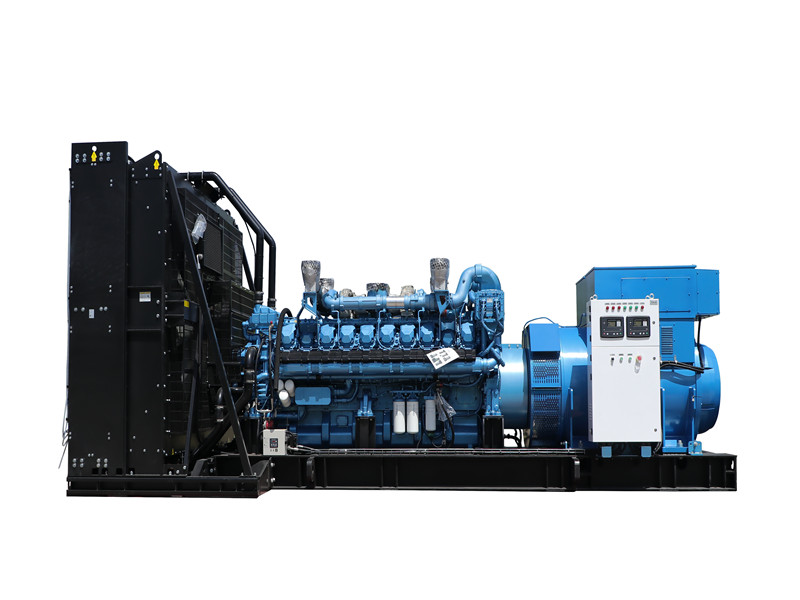

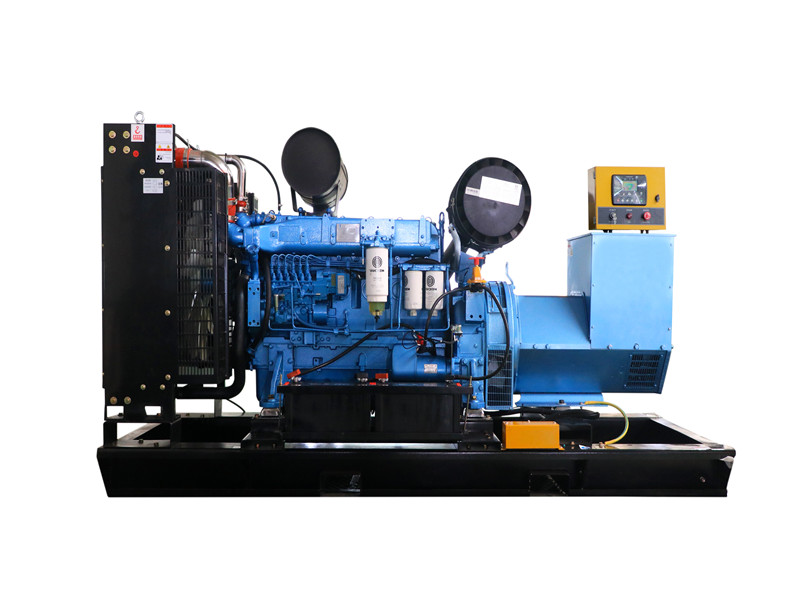

Comler diesel generator sets use high-performance COMLER generators, Baudouin engines and other configurations. The superior overall design, production, and assembly are more in line with standard technical requirements. Constant pressure control systems are configured according to standard requirements. It has the characteristics of more convenient operation, good efficiency, lower fuel consumption, longer service life, and low carbon and environmental protection. The perfect pre-sales, in-sales, after-sales and maintenance service system and respected brand will provide customers with better services and contribute to promoting the overall technological development and progress of China's electromechanical industry.
