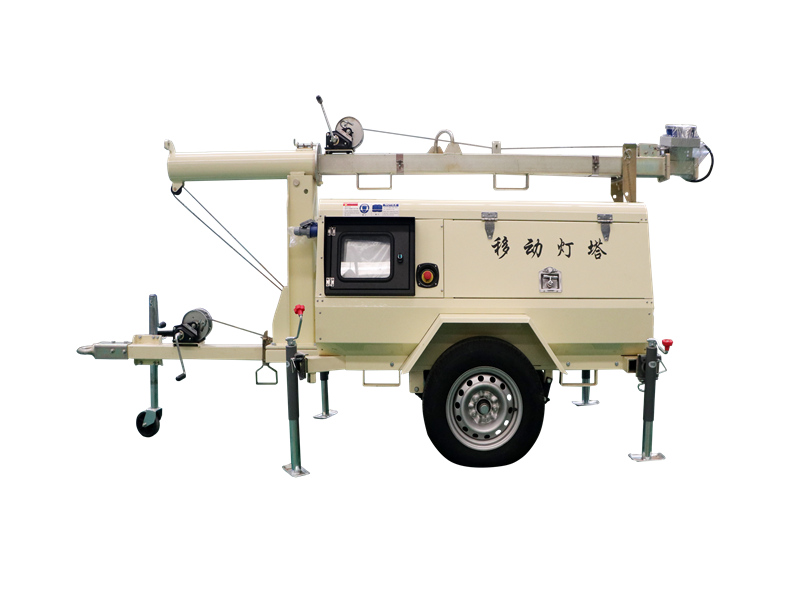

1. Comler Mobile Lighting Tower Overview
The Comler Emergency High-Speed Mobile Lighting Tower is designed for various emergency scenarios. It represents a new generation of mobile lighting towers ideally developed and produced for night illumination, emergencies, disaster prevention, rescue operations, flood control, drought relief, earthquake response, epidemic prevention, workplace safety, and construction projects. Comler specializes in researching and developing emergency lighting systems and operates a dedicated mobile emergency lighting R&D center. Its 5KW-20KW manual and fully automatic mobile lighting towers have earned widespread acclaim from domestic and international clients, making them the preferred lighting and power solution for users across various industries.
Technical Advantages
The Comler Mobile Lighting Tower features a modular design, comprising a high-speed mobile chassis, a soundproof enclosure, an articulated tow bar, a power unit, a high-strength lifting mast, and a quick-connect lighting interface system. Its technical design advantages are as follows:
1.1Chassis Advantage: High-strength mobile chassis with high-performance torsion resistance and shock absorption ensures the power unit remains stable without shaking or vibration during high-speed or off-road transit. Mounted on this robust chassis, the tower can be rapidly deployed on-site at speeds of 80-100 km/h. Equipped with tubeless tires for enhanced safety and reliability during transport, preventing blowouts.
1.2Towing Advantage: Adjustable articulated tow bar (for units below 200KW) allows flexible towing by various vehicles.
2.Safety Braking Advantage: The disc brake system ensures immediate automatic braking during high-speed transit or emergencies. Compatible with any towing vehicle, it features a reliable collision-activated emergency brake system that engages automatically when the lead vehicle brakes. A parking brake securely locks the brake disc to prevent rolling when stationary.
3.Enclosure Advantage: The trailer enclosure is constructed from 2.5mm thick galvanized steel sheet with plastic coating, ensuring rust-free operation for ten years. It provides thermal insulation and weatherproofing. Generator noise is limited to 65 dB. Electric start functions in ambient temperatures from -30°C to 42°C. The generator features PMG (Permanent Magnet Generator) for anti-interference capability and an IP56 protection rating, making it suitable for demanding emergency environments.
4.Silent Operation Advantage: Mobile silent power unit. The enclosure is manufactured specifically for silent operation, keeping noise levels below 75 dB.
5.Power Unit Advantage: Equipped with high-performance original Comler power units, featuring Euro III emission standard high-pressure common rail engines, permanent magnet generators, and Deep Sea Electronics (UK) control systems.
6.Fuel Supply Advantage: With a full tank of diesel, the generator can operate continuously for 48 hours. In locations with mains power, it can also connect to a 220V AC supply for extended illumination.
7.Lifting Mast Advantage: The tower's lifting mast is precision-engineered from high-strength alloy material, enabling automatic height adjustment to 6 meters or 9 meters. Four lamp heads can be individually adjusted vertically and horizontally to ensure light coverage over the entire work area.
8.Electrical System Advantage: Features an intelligent control box for switching lights on/off. Equipped with LED lamps capable of illuminating a radius of up to 500 meters. Includes 220V and 380V external quick-connect couplers, comprehensive protection devices, and Schneider Electric components.
9.Operational Design: Offers both manual and hydraulic fully automatic mast lifting. Light switching and mast height adjustment can be controlled manually or automatically, ensuring simplicity, safety, and reliability. Automatic lifting speed is <30 seconds; lowering speed is <18 seconds.
10.Warning Signal Advantage: The trailer is equipped with an automatic turn signal warning system and features a quick-connect coupling for the lead vehicle's electrical system, enhancing turning safety.
11.Smart Connectivity Advantage: Deep integration between personnel and the unit is achieved through a mobile APP for unit management. The "Internet + Generator" concept combines internet technology seamlessly with the generator, enabling remote management and uninterrupted service. This optimizes unit efficiency, significantly saving manpower, material resources, and costs, continuously creating value for customers.
12.Unit Service Advantage: The unit includes remote management and service capabilities, offering 24/7 uninterrupted support. Service stations are available within 40 km of the usage location. The unit guarantees 1500 hours of trouble-free operation and includes maintenance and spare parts support for wear components.
