COMLER Intelligent Interconnected Fully Automatic Generator Set Power Supply System (Engineer XNL)

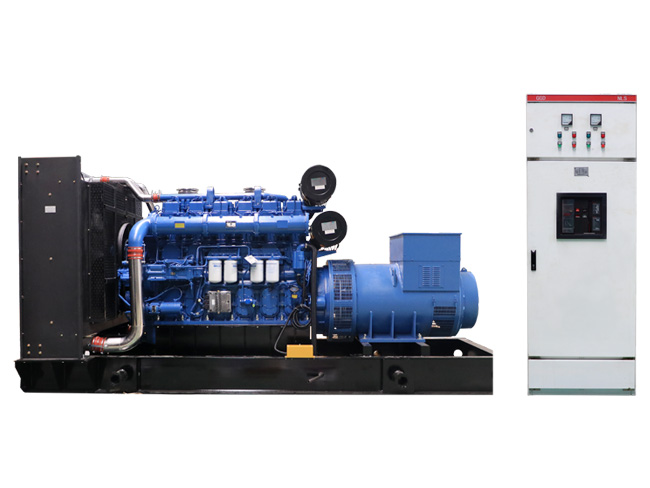

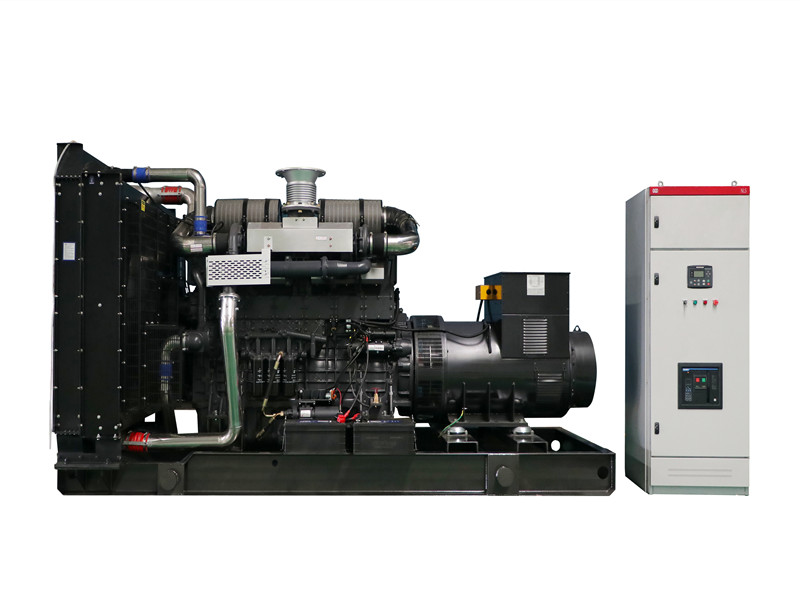

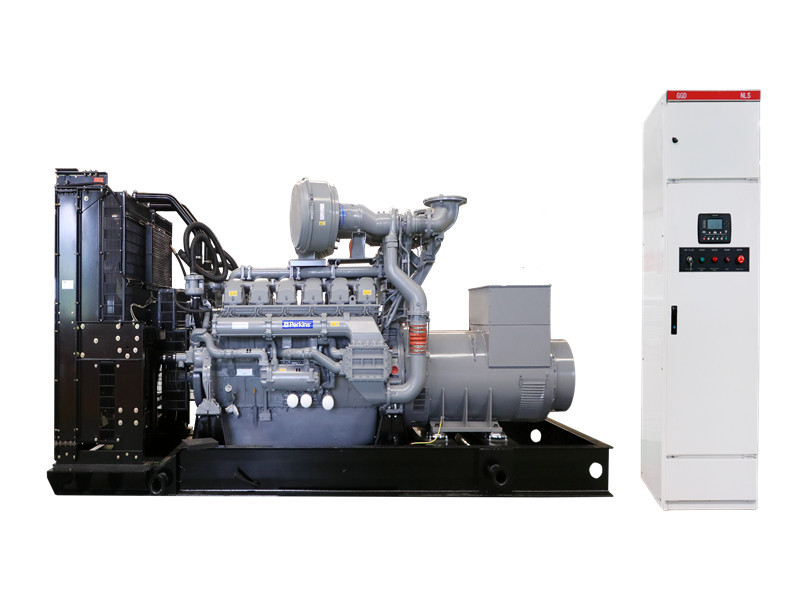

COMLER intelligent interconnection fully automatic generator set, the overall frame adopts GGD type cabinet, the system adopts COMLER fifth-generation interconnection microcomputer intelligent control system, equipped with ATS and high-performance intelligent electrical system. The unit can automatically start and stop, automatically switch between mains power and generator power, and automatically monitor the operation status of the unit under unattended situation. It has four protections and multiple protection functions, and can present various data of the unit by digital display, such as line voltage, line current, output power, power factor, frequency, reverse power, under-voltage, overcurrent and etc. The engine part: it can display oil pressure, water temperature, oil temperature, speed and etc. The GGD cabinet is produced by an automated sheet metal production line, designed reasonably according to standard requirements, and the cabinet body is treated with anti-corrosion craft, besides it can also be combined with multiple cabinets. The automated intelligent control system has two modes: automatic and manual functions, along with the grid connection system, so that it can supply power to the load together with the municipal power grid and remote service functions can be achieved.
The product has undergone comprehensive and strict tests and has passed the CQC quality certification of China Quality Certification Center.
1. Functions of COMLER Fully Automatic Generator Set
The COMLER full- automatic generator set is widely used for schools, hospitals, hotels, buildings, real estate, information centers, industrial and mining enterprises as emergency power supply after the mains power is interrupted. It has strong breaking capacity, good dynamic stability, flexible electrical operation, convenient combination, strong series and practicality, novel structure, and high protection level.
2. Technical Advantage
Technical Parameters:
Serial No. | Description | Technical Parameters |
1 | Ratted voltage | 380V(400V)、440V、660V |
2 | Rated current | 400~7400A |
3 | Rated short-circuit break current | 350-80KA |
4 | Rated short-tine withstand current | 450-80kA |
5 | Rated peak withstand current | 5105kA |
6 | Protection degree | IP30 |
Technical parameters:
1. Technical performance advantage: Utilizes the fifth-generation COMLER intelligent power supply system with superior performance technology.
2. Operation and display advantage: Microcomputer operation panel, liquid crystal display with backlight, achieve self-start and self-stop functions of the unit.
3. Protection advantage: Equipped with four protection functions, including detection of main power overvoltage, undervoltage and phase loss, as well as detection of overvoltage, undervoltage, overfrequency, and overcurrent for the unit.
4. Technical update advantage: Upgrades the software version, allowing customers to upgrade the version as required to meet technical requirements.
5. Language advantage: The control system supports 13 languages, meeting the language needs of different customers.
6. Working mode advantage: support 4 kinds of working modes and protection parameters.
7. Regular self-maintenance advantage: support the preset running time (the unit can be started regularly for maintenance operation) and maintenance cycle functions.
8. Remote control advantage: support remote management of the system.
9. Safety advantage: Certified by the China Quality Certification Center (CQC) for quality.
10. Intelligent interconnection: Deep integration between person and the unit, internet + generator, by means of the mutual combination of Internet technology and the unit to achieve remote efficient management and uninterrupted service, to make the unit operate more efficient. Significantly saving manpower, material resources, and financial resources, continuously creating value for customers.
三、National Standard
ISO 8528-5:2025 | 《ALTERNATING CURRENT GENERATOR SET DRIVEN BY RECIPROCATING INTERNAL COMBUSTION ENGINE - PART 5: GENERATOR SET》 |
GB 7251.1-2023 | 《LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR - PART 1: GENERAL PRINCIPLES》 |
GB 7251.2-2023 | 《LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR - PART 2: COMPLETE POWER SWITCHGEAR AND CONTROLGEAR》 |
GB/T 2820.1-2022 | 《INTERNAL COMBUSTION ENGINE-POWERED AC GENERATOR SETS - PART 1: APPLICATIONS, SPECIFICATIONS AND PERFORMANCE》 |
GB/T 15548-2023 | 《GENERAL CONDITIONS FOR THREE-PHASE SYNCHRONOUS AC GENERATOR DRIVEN BY RECIPROCATING INTERNAL COMBUSTION ENGINE》 |
GB/T 12786-2021 | 《GENERAL TECHNICAL CONDITIONS FOR AUTOMATED INTERNAL COMBUSTION ENGINE POWER STATIONS》 |
GB/T 4712-2008 | 《CLASSIFICATION REQUIREMENTS FOR AUTOMATED DIESEL GENERATOR SETS》 |
GB/T 5226.1-2019 | 《MECHANICAL AND ELECTRICAL SAFETY - MECHANICAL AND ELECTRICAL EQUIPMENT - PART 1: GENERAL TECHNICAL REQUIREMENTS》 |
The COMLER intelligent interconnection full- automatic power supply system has become an essential choice for most users and ideal power supply product for users in various industries on based of superior technical performance. The COMLER automated power supply system is a partner of core electrical automation technology.
